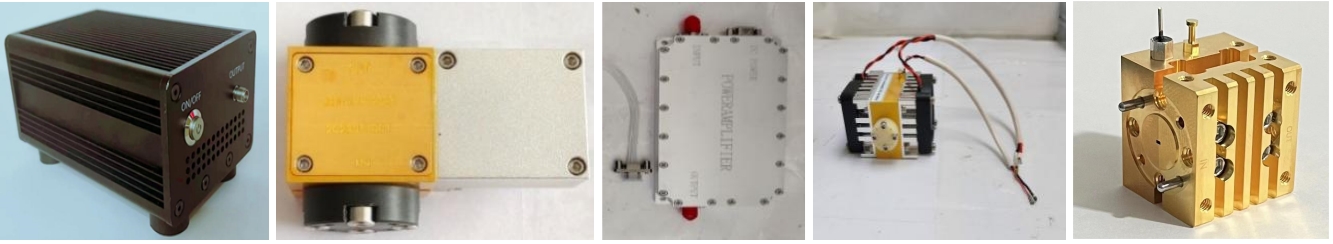

功放+增益可调 |
|---|
| 序号 | 型号 | 频率(GHz) | 增益(dB) | Psat(dBm) | P1dB(dBm) | 接口 |
|---|---|---|---|---|---|---|
| 1 | MPA-0001018-G30P30A | 0.1-18 | 30 min, | 30 min | 25 min | SMA |
| 2 | MPA-0001018-G40P26A | 0.1-20 | 40 min | 27 min | 26 min | 2.92mm |
| 3 | MPLA-0001050-G30P17A | 0.1-50 | 30 min | 17 min | 15 min/ NF：6 max |
2.4mm |
| 4 | MPA-0001067-G20P15A | 0.1-67 | 20 min | 15 min | 13 min | 1.85mm |
| 5 | MPA-0005020-G30P30A | 0.5-20 | 30 min | 30 min | 26 min | SMA |
| 6 | MPA-0007040-G40P22A | 0.7-40 | 40 min | 22 min | 20 min | 2.92mm |
| 7 | MPA-0008018-G40P33A | 0.8-18 | 40 min | 33 min | SMA | |
| 8 | MPA-0008040-G40P33A | 0.8-40 | 40 min | 33 min | 30 min | 2.92mm |
| 9 | MPA-001020-G30P25A | 1-20 | 30 min | 26 min | 2.92mm | |
| 10 | MLPA-001040-G40P23A | 1-40 | 40 min | 23 min | 21 min | 2.92mm |
| 11 | MPA-002018-G30P30A | 2-18 | 30 min | 30 min | 27 min | SMA |
| 12 | MPA-006018-G37P37C | 2-20 | 35 min(20可调) | 37 min | 30 min | 2.92mm |
| 13 | MPA-002040-G40P22S | 2-40 | 40 min | 22 min | 20 min | 2.92mm |
| 14 | MPA-018040-G30P26A | 18-40 | 30 min | 27 min | 2.92mm | |
| 15 | MPA-018040-G37P37C | 18-40 | 35 min(20可调) | 38 min | 30 min | 2.92mm |
| 16 | MPA-018040-G38P30A | 18-40 | 38 min | 30 min | 28 min | 2.92mm |
| 17 | MPA-018040-G40P33A | 18-40 | 40 min | 33 min | 30min | 2.92mm |
| 18 | MPA-018040-G55P36A | 18-40 | 55 min | 38 min | 36 min | 2.92mm |
| 19 | MPA-018050-G30P17A | 18-50 | 30 min | 17 min | 2.4mm | |
| 20 | MPA-018050-G30P20A | 18-50 | 30 min | 20 min | 2.4mm | |
| 21 | MPA-018050-G30P20A | 18-50 | 30 min | 20 min | 17 min | 2.4mm |
| 22 | MPA-020050-G30P20A | 20-50 | 30 min | 20 min | 19 min | 2.4mm |
| 23 | MPA-026040-G40P40A | 26.5-40 | 40 min | 40 min | 2.92mm | |
| 24 | MPA-032038-G46P37A | 32-38 | 46 min | 37 min | 33 min | 2.92mm |
| 25 | MPA-040067-G33P37A | 40-67 | 33 min | 32 min | 1.85mm | |
| 26 | MPA-040060-G40P20S | 40-60 | 40 min | 20 min | 18 min | 1.85mm |
| 27 | MPA-040060-G44P30A | 40-60 | 44 min | 32 min | WR19 | |
| 28 | MPA-050075-G20P31A | 50-75 | 20 min | 31 min | 26 typ | WR15 |
| 29 | MPA-050075-G51P30A | 50-75 | 51 min | 32 min | WR15 | |
| 30 | MPA-060087G20-P28A | 60-87 | 20 min | 28 min | WR12 | |
| 31 | MPA-060090-G33P32A | 60-90 | 33 min | 31 min | 27 min | WR12 |
| 32 | MPA-071076-G55P27A | 71-76 | 55 min | 27 min | WR12 | |
| 33 | MPA-075110-G18P22A | 75-110 | 18 typ | 21 min | WR10 | |
| 34 | MPA-075110-G25P30A | 75-110 | 25 min | 29 min | 25 min | WR10 |
| 35 | MPA-075110-G40P26A | 75-110 | 40 min | 26 min | WR10 | |
| 36 | MPA-075110G60-P30A | 75-110 | 60 typ | 30 typ | WR10 | |
| 37 | MPA-088100-G15P20A | 88-100 | 15 typ | 20 typ | WR10 | |
| 38 | MPA-090097-G70P45A | 90-97 | 70 min | 44 min | 40 min | WR10 |
| 39 | MPA-090098-G20P27A | 90-98 | 20 min | 26 min | 23 min | WR10 |
| 40 | MPA-092096-G26P15A | 92-96 | 27 min | 15 min | WR10 | |
| 41 | MPA-092096-G18P23A | 92-96 | 18 min | 23 min | 18 min | WR10 |
| 42 | MPA-092096-G15P33A | 92-96 | 15 min | 33 min | 28 min | WR10 |
| 43 | MPA-092096-G13P36A | 92-96 | 13 min | 36 min | WR10 | |
| 44 | MPA-110150-G15P15A | 110-150 | 15 min | 15 typ | 12 typ | WR06 |
| 45 | MPA-110170-G20P17A | 110-170 | 20 typ | 17 typ | WR06 | |
| 46 | MPA-110170-G20P20A | 110-170 | 20 typ | 20 typ | WR06 | |
| 47 | MPA-110170-G20P22A | 110-170 | 20 typ | 22 typ | WR06 | |
| 48 | MPA-170270-G15P10A | 170-270 | 15 typ | 10 typ | WR04 | |
| 49 | MPA-170270-G15P13A | 170-270 | 15 typ | 13 typ | WR04 | |
| 50 | MPA-170270-G15P15A | 170-270 | 15 typ | 15 typ | WR04 | |
| 51 | MPA-205230-G15P12A | 205-230 | 15 min | 12 typ | 8 typ | WR04 |
| 52 | MPA-205230-G16P14A | 205-230 | 16 typ | 14 typ | 10 typ | WR04 |
| 53 | MPA-212225-G16P17A | 212-225 | 16 typ | 17 typ | WR04 |

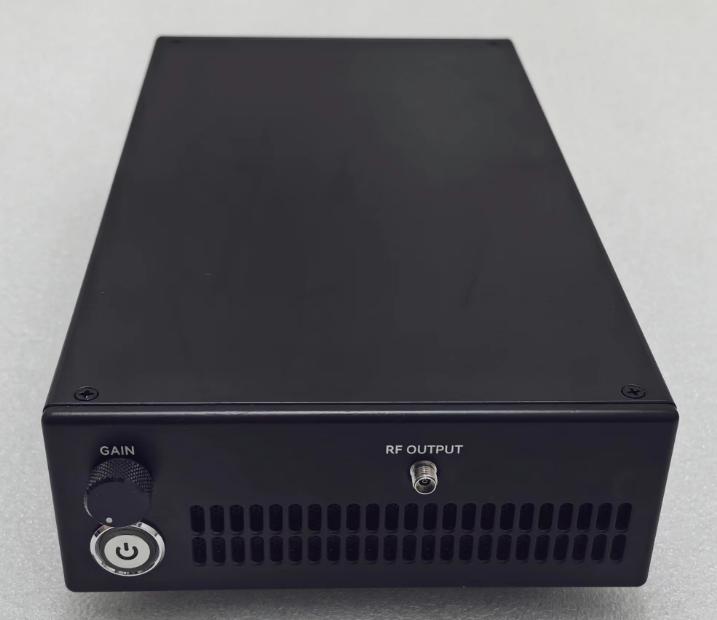

| 参数 | 单位 | 最小值 | 典型值 | 最大值 |
|---|---|---|---|---|
| 频率范围 | GHz | 18.0 | 40.0 | |
| 增益 | dB | 44.4 | 48.9 | |
| 增益平坦度 | dB | ±2.3 | ||
| 增益调节范围 | dB | 18.2 | ||
| 功率调节步进 | dB | 0.5 | ||
| 1dB压缩点输出功率 | dBm | 28.4 | ||
| 至天线端饱和输出功率 | dBm | 22 | 38.5 | |
| 输入端口回波损耗 | dB | -11.6 | ||
| 输入接口 | / | 2.92mm-K | ||
| 输出接口 | / | 2.92mm-K | ||
| 工作电压/电流 | / | 220VAC | ||
