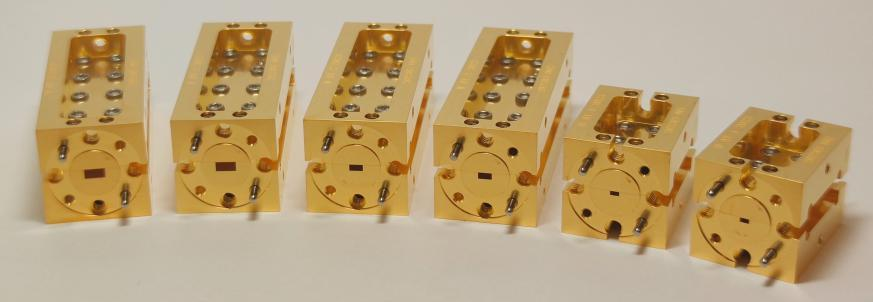

Fixed attenuator |
|---|
| Model | MFA-040060 | MFA-050075 | MFA-060090 | MFA-075110 | MFA-090140 | MFA-110170 |
| Flange | WR19 | WR15 | WR12 | WR10 | WR8 | WR6.5 |
| Attenuation range | 10±0.5dB/ 20±1dB/ 30±1.5dB | |||||
| VSWR | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Max. Power | 10W | 10W | 10W | 8W | 5W | 5W |
| OutlineSize | / | 50.8*19.1*19.1mm | 50.8*19.1*19.1mm | 50.8*19.1*19.1mm | 25.4*19.1*19.1mm | 25.4*19.1*19.1mm |
| Model | MFA-140220 | MFA-170260 | MFA-220330 | MFA-260400 | MFA-325500 |
| Flange | WR5.1 | WR4.3 | WR3.4 | WR2.8 | WR2.1 |
| Attenuation range | 10±0.5dB/ 20±1dB/ 30±1.5dB | ||||
| VSWR | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Max. Power | 2W | 2W | - | - | - |
| OutlineSize | 25.4*19.1*19.1mm | 25.4*19.1*19.1mm | 25.4*19.1*19.1mm | 25.4*19.1*19.1mm | 25.4*19.1*19.1mm |
| Item | Specifications |
| Waveguide | UG-387/U-M flange |
| Material | Brass/Aluminum alloy |
| Surface treatment | Gold plating/Conductive oxidation |
| Working temperature | 0~50℃ |
