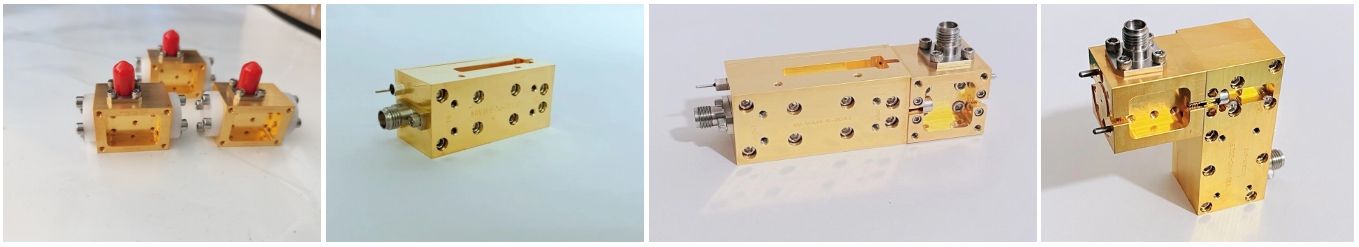

Mixer, multiplier |
|---|
| RF. Frequency range | 50GHz-75GHz | 60GHz-90GHz | 75GHz-110GHz | 90GHz-140GHz | 110GHz-170GHz |
|---|---|---|---|---|---|
| LO. Frequency range | 50GHz-75GHz | 60GHz-90GHz | 75GHz-110GHz | 90GHz-140GHz | 110GHz-170GHz |
| Conversion loss | ≤8dB | ≤8dB | ≤8dB | ≤9dB | ≤9dB |
| RF./LO. interface | WR15/WR15 | WR12/WR12 | WR10/WR10 | WR8.0/WR8.0 | WR6.5/WR6.5 |
| RF. 1dB Psat | 7dBm.min | 3dBm.min | 3dBm.min | 3dBm.min | 3dBm.min |
| ×N | 1 | 1 | 1 | 1 | 1 |
| LO. Power | 10dBm-13dBm | 10dBm-13dBm | 10dBm-13dBm | 10dBm-13dBm | 10dBm-13dBm |
| IF Frequency range | 5MHz-25GHz | 5MHz-30GHz | 5MHz-35GHz | 5MHz-40GHz | 5MHz-40GHz |
| IF interface | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 2.92mm |
| RF. Frequency range | 140GHz-220GHz | 170GHz-260GHz | 220GHz-330GHz | 260GHz-400GHz | 330GHz-500GHz |
|---|---|---|---|---|---|
| LO. Frequency range | 70GHz-110GHz | 85GHz-130GHz | 110GHz-165GHz | 130GHz-200GHz | 82.5GHz-125GHz |
| Conversion loss | ≤12dB | ≤12dB | ≤13dB | ≤14dB | ≤20dB |
| RF./LO. interface | WR5.1/WR10 | WR4.3/WR8.0 | WR3.4/WR6.5 | WR2.8/WR5.1 | WR2.2/WR9.0 |
| RF. 1dB Psat | -3dBm.min | -3dBm.min | -3dBm.min | -3dBm.min | -3dBm.min |
| ×N | 2 | 2 | 2 | 2 | 4 |
| LO. Power | 5dBm-7dBm | 5dBm-7dBm | 5dBm-7dBm | 5dBm-7dBm | 10dBm-13dBm |
| IF Frequency range | 5MHz-40GHz | 5MHz-40GHz | 5MHz-40GHz | 5MHz-40GHz | 5MHz-40GHz |
| IF interface | 2.92mm | 2.92mm | 2.92mm | 2.92mm | 2.92mm |
| Active Multiplier Chain(AMC) | |||||||
| Frequency range | 40GHz-60GHz | 45-70GHz | 50GHz-75GHz | 55-85GHz | 60GHz-90GHz | 75GHz-110GHz | 90GHz-140GHz |
| Output Power | ≥20dBm | ≥17dBm | ≥17dBm | ≥23dBm | ≥15dBm | ≥10dBm | ≥10dBm |
| RF. interface | WR19 | WR15 | WR15 | WR12 | WR12 | WR10 | WR8.0 |
| ×N | 4 | 6 | 6 | 4 | 6 | 6 | 6 |
| LO. Power | 3dBm-10dBm | 3dBm-10dBm | 3dBm-10dBm | 3dBm-10dBm | 3dBm-10dBm | 3dBm-10dBm | 3dBm-10dBm |
| LO. interface | SMA | SMA | SMA | SMA | SMA | SMA | SMA |
| Power | 5V/1.2A | 5V/1.2A | 5V/1.2A | 5V/1.2A | 5V/1.2A | 5V/1A | 5V/1A |
| Passive Frequency Multiplier | |||||||
|---|---|---|---|---|---|---|---|
| Frequency range | 110GHz-170GHz | 110GHz-170GHz | 140GHz-220GHz | 170GHz-260Hz | 220GHz-330GHz | 260GHz-400GHz | 330GHz-500GHz |
| Efficiency | 8%-12% | 4%-6% | 10%-15% | 3%-5% | 3%-5% | 2.5%-4% | 2.5%-4% |
| Max. input Power | 20dBm/23dBm | 20dBm/23dBm | 20dBm/23dBm | 20dBm/23dBm | 17dBm/20dBm | 13dBm/16dBm | 13dBm/16dBm |
| ×N | 2 | 3 | 2 | 3 | 3 | 3 | 3 |
| Output Power typ. | 12mw/24mw | 5mw/10mw | 12mw/24mw | 5mw/10mw | 2mw/4mw | 0.5mw/1mw | 0.25mw/0.5mw |
| Output interface | W6.5 | W6.5 | WR5.1 | WR4.3 | WR3.4 | WR2.8 | WR2.2 |
| input interface | WR12 | WR19 | WR10 | WR12 | WR10 | WR8.0 | WR6.5 |
