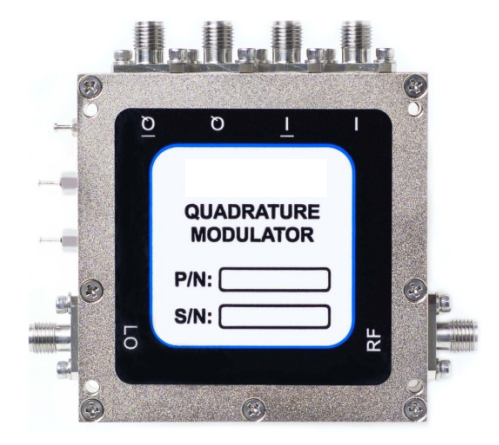

IQ调制器 |
|---|
| AD4080B | AD60100B | AD90120B | AD110140B | AM150175A | |
| 本振/射频 频率: | 4.0 – 8.0 GHz | 6 – 10 GHz | 9 – 12 GHz | 11– 14 GHz | 15– 17.5 GHz |
| I/Q 带宽: | 275 MHz | 275 MHz | 275 MHz | 275 MHz | -- |
| 输入 IP3: | +23 dBm | +22 dBm | +23 dBm | +20 dBm | +18 dBm |
| 输入 P1dB: | +14 dBm | +12 dBm | +13 dBm | +12 dBm | Sideband Suppression:-35 dBc |
| 幅度不平衡: | ±0.1 dB | ±0.1 dB | ±0.1 dB | ±0.2 dB | LO Leakage: -45 dBm |
| 相位误差: | ±2 Degree | -2 Degree | -1 Degree | ±2 Degree | -- |
| 本振功率: | +4 dBm | +5 dBm | +5 dBm | +5 dBm | +6 dBm |
| 直流供给: | +5V @ 110 mA, -5V @ 40 mA | +5V @ 110 mA, -5V @ 40 mA | +5V @ 110 mA, -5V @ 40 mA | +5V @ 110 mA, -5V @ 40 mA | +5V @ 110 mA, -5V @ 40 mA |
| QD0622B | QD1214B | QD1220B | QD1422B | QD2040B | QD2326B | QD3040B | QD4070B | |
| 本振/射频 频率: | 600 – 2200 MHz | 1200 – 1400 MHz | 1200 – 2000 MHz | 1400 – 2200 MHz | 2000 – 4000 MHz | 2300 – 2600 MHz | 3000 – 4000 MHz | 4000 – 7000 MHz |
| 输入 IP2: | +65 dBm | +65 dBm | +65 dBm | +65 dBm | +65 dBm | +65 dBm | +70 dBm | +70 dBm |
| 输入 IP3: | +12 dBm | +17 dBm | +18 dBm | +18 dBm | +16 dBm | +15 dBm | +17 dBm | +23 dBm |
| 输入 P1dB: | +6 dBm | +8 dBm | +8 dBm | +7 dBm | +6 dBm | +6 dBm | +7 dBm | +13 dBm |
| 幅度不平衡: | 0.1 dB rms | 0.1 dB rms | 0.1 dB rms | 0.1 dB rms | 0.2 dB rms | 0.05 dB rms | 0.1 dB rms | 0.2 dB rms |
| 正交调幅 相位误差: | 1.4° rms |
1.1° rms |
1.2° rms |
1.5° rms |
2.5° rms |
0.5° rms |
1.6° rms |
2° rms |
| 本振功率: | +14 dBm | +14 dBm | +14 dBm | +14 dBm | +15 dBm | +15 dBm | +15 dBm | +19 dBm |
