MHC Isolator & Circulators
Price：￥0.00

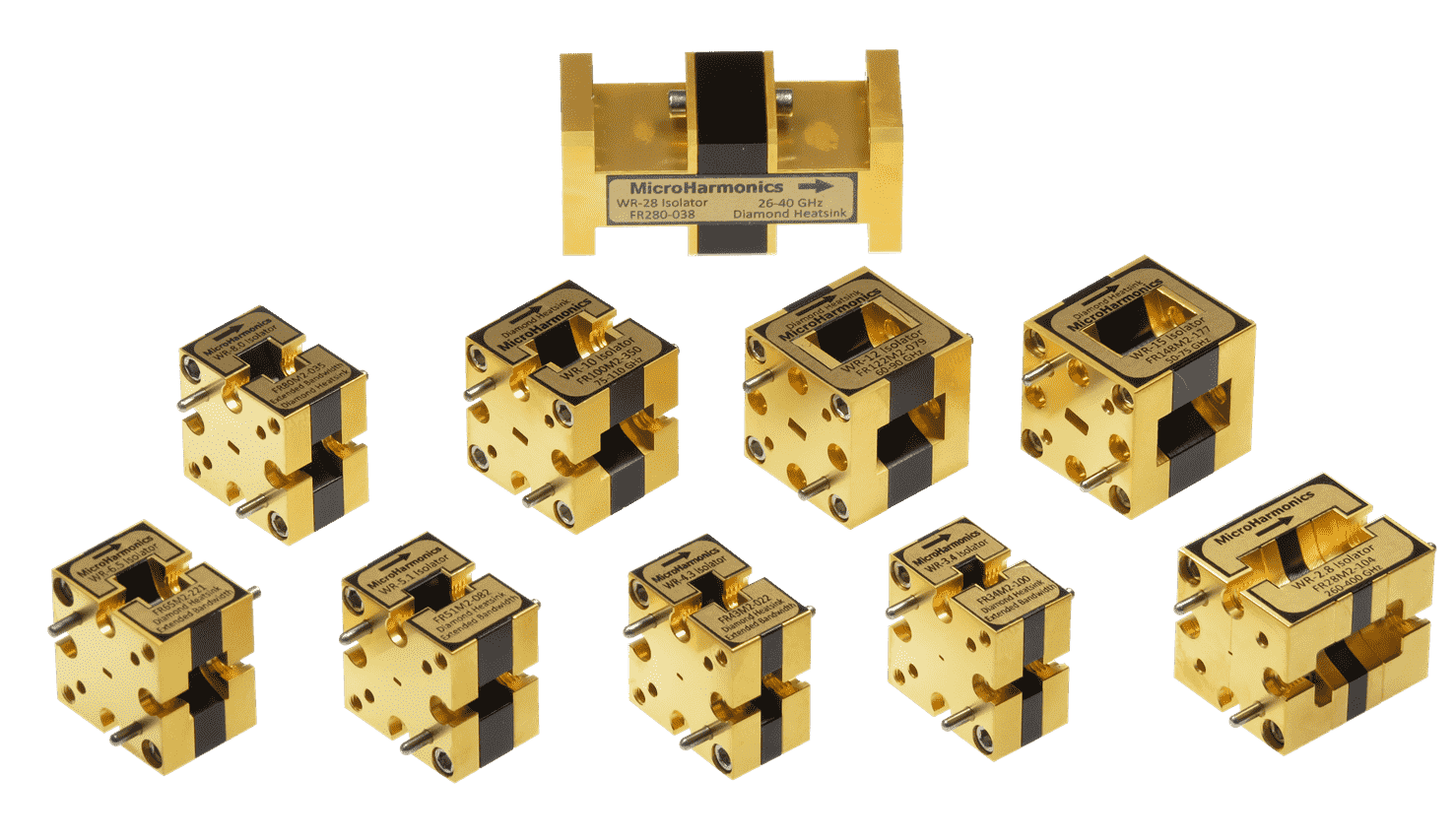

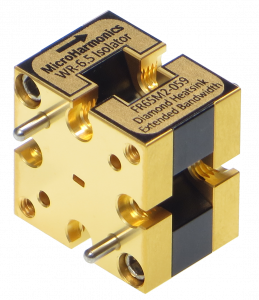

FARADAY ROTATION ISOLATORS
Model Flange (EIA) Band (GHz) Insertion Loss (dB, Avg) Isolation (dB, Typ Min) Max Power(W) FR280 WR-28 26.5 – 40 0.5 23 4.0 FR188 |
FR188-599WR-19 40 – 60 0.5 25 3.4 FR148 WR-15 50 – 75 0.6 22 3.0 FR122 WR-12 60 – 90 0.6 20 2.7 FR100 WR-10 75 – 110 0.6 22 2.3 FR090 WR-9 82 – 122 0.9 21 2.1 FR080 WR-8 90 – 140 0.8 19 1.8 FR065 WR-6.5 110 – 170 0.9 23 1.5 FR051 WR-5.1 140 – 220 1.0 22 1.0 FR043 WR-4.3 170 – 260 1.3 22 0.7 FR034 WR-3.4 220 – 325 1.7 22 0.4 FR028 WR-2.8 260 – 400 2.3 20 0.3 CRYOGENIC ISOLATORS
Model Flange (EIA) Band (GHz) Insertion Loss [25K, 300K] (dB, Avg) Isolation [25K, 300K] (dB, Typ Min) Max Power(W) FR280C WR-28 26.5 – 40 0.6, 0.5 24, 19 1.2 FR148C WR-15 50 – 75 0.5, 0.7 28, 17 1.0 FR122C WR-12 60 – 90 0.5, 0.6 22, 17 1.0 FR100C WR-10 75 – 110 0.5, 0.6 24, 17 1.0 FR090C WR-9 82 – 122 0.7, 0.9 25, 19 0.9 FR080C WR-8 90 – 140 0.7, 0.9 25, 19 0.8 FR065C (TBD) WR-6.5 110 – 170 FR051C (TBD) WR-5.1 140 – 220 MILLIMETER WAVE HYBRID CIRCULATORS

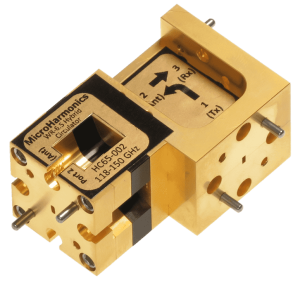

Model Flange (EIA) Band (GHz) Insertion Loss (dB, Avg) Isolation [S12, S23, S31] (dB, Typ Min) HC148 WR-15 54 – 68 0.6 21, 22, 19 HC122 WR-12 70 – 86 0.6 21, 22, 20 HC100 WR-10 85 – 104 0.6 24, 24, 18 HC080 WR-8 107 – 133 0.8 24, 24, 19 HC065 WR-6.5 118 – 150 1.0 23, 23, 18 HC051 WR-5.1 150 – 190 1.8 20, 20, 16 HC043 WR-4.3 196 – 250 1.6 21, 20, 18 HC034 WR-3.4 258 – 330 2.6 20, 20, 17 MILLIMETER WAVE HYBRID CIRCULATORS
Model Flange (EIA) Band (GHz) Insertion Loss (dB, Avg) Isolation [S12, S23, S31] (dB, Typ Min) HC065F WR-6.5 110- 170 1.2 24, 24, 17
Voltage Variable Attenuators
Model Flange (EIA) Band (GHz) Dynamic Range (dB, Min) Insertion Loss (dB, Avg) Max Power (W) VA100 WR-10 75 – 110 0 – 35 1.2 2.3 VA65 WR-6.5 110 – 170 0 – 35 1.5 1.5
Model Flange (EIA) Band (GHz) Insertion Loss (dB, Avg) Isolation [S12, S23, S31] (dB, Typ Min) OT65
WR-6.5 110- 170 1.0 23, 23, 18
Official website：https://microharmonics.com/
