MHC隔离器、环形器、压控衰减器、正交模转换器 |
|---|
| Model | Flange (EIA) |
Band (GHz) |
Insertion Loss (dB, Typ) |
Isolation (dB, Typ) |
Max Power (W) |

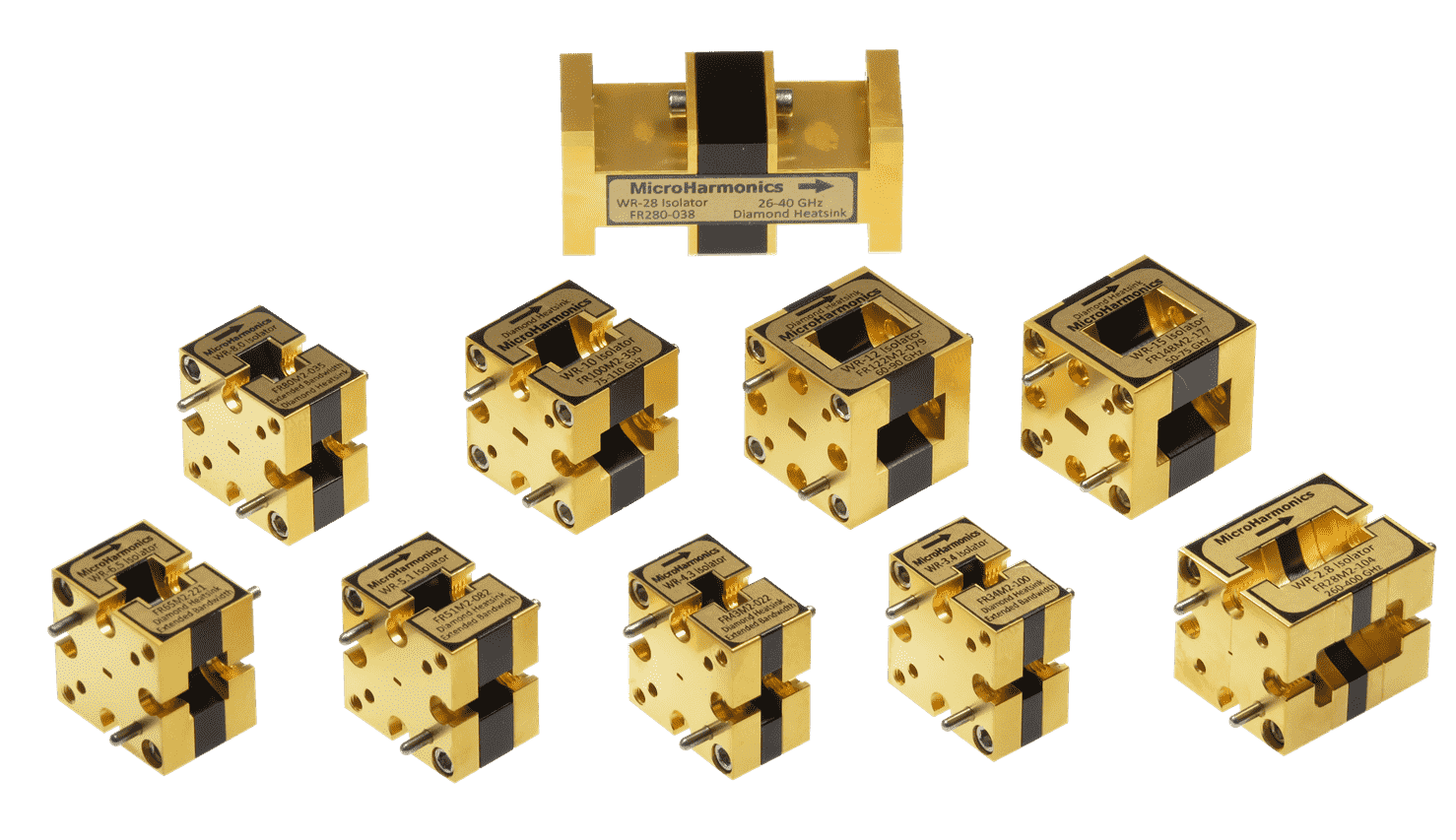

| FR280 | WR-28 | 26.5 – 40 | 0.5 | 23 | 5.0 |
| FR188 | WR-19 | 40 – 60 | 0.5 | 20 | 4.3 |
| FR148 | WR-15 | 50 – 75 | 0.6 | 23 | 3.8 |
| FR122 | WR-12 | 60 – 90 | 0.5 | 20 | 3.5 |
| FR100 | WR-10 | 75 – 110 | 0.6 | 25 | 2.9 |
| FR090 | WR-9 | 82 – 122 | 0.9 | 21 | 2.7 |
| FR080 | WR-8 | 90-140 | 0.8 | 24 | 2.4 |
| FR065 | WR-6.5 | 110-170 | 0.8 | 25 | 1.9 |
| FR051 | WR-5.1 | 140-220 | 1.1 | 22 | 1.3 |
| FR043 | WR-4.3 | 170-260 | 1.3 | 22 | 1.0 |
| FR034 | WR-3.4 | 220-330 | 1.8 | 23 | 0.6 |
| FR028 | WR-2.8 | 260-400 | 2.7 | 21 | 0.4 |
| Model | Flange(EIA) | Band(GHz) | Insertion Loss[25K,300K] (dB, Avg) |
Isolation[25K,300K] (dB, Typ, Min) |
Max power (W) |
| FR280C | WR-28 | 26.5 – 40 | 0.6,0.5 | 24,19 | 1.2 |
| FR148C | WR-15 | 50 – 75 | 0.5,0.7 | 28,17 | 1.0 |
| FR122C | WR-12 | 60 – 90 | 0.5,0.6 | 22,17 | 1.0 |
| FR100C | WR-10 | 75 – 110 | 0.5,0.6 | 24,27 | 1.0 |
| FR090C | WR-9 | 82 – 122 | 0.7,0.9 | 25,19 | 0.9 |
| FR080C | WR-8 | 90 – 140 | 0.7,0.9 | 25,19 | 0.8 |
| FR065C(TBD) | WR-6.5 | 110 – 170 | |||
| FR051C(TBD) | WR-5.1 | 140 – 220 |
| Model | Flange(EIA) | Band(GHz) | Insertion Loss (dB, Avg) |
Isolation[S12,S23,S31] (dB, Typ min) |
| HC148 | WR-15 | 54– 68 | 0.6 | 21,22,19 |
| HC122 | WR-12 | 70– 86 | 0.6 | 21,22,20 |
| HC100 | WR-10 | 85– 104 | 0.6 | 24,24,18 |
| HC080 | WR-8 | 107– 133 | 0.8 | 24,24,19 |
| HC065 | WR-6.5 | 118– 150 | 1.0 | 23,23,18 |
| HC051 | WR-5.1 | 150– 190 | 1.8 | 20,20,16 |
| HC043 | WR-4.3 | 196– 250 | 1.6 | 21,20,18 |
| HC034 | WR-3.4 | 258– 330 | 2.6 | 20,20,17 |
| HC065F | WR-6.5 | 110– 170 | 1.1 | 23,21,19 |
| Model | Flange (EIA) |
Band (GHz) |
Dynamic Range (dB, Min) |
Insertion Loss (dB, Avg) |
Max Power (W) |
|---|---|---|---|---|---|
| VA148(TBD*) | WR-15 | 50 – 75 | |||
| VA122(TBD*) | WR-12 | 60 – 90 | |||

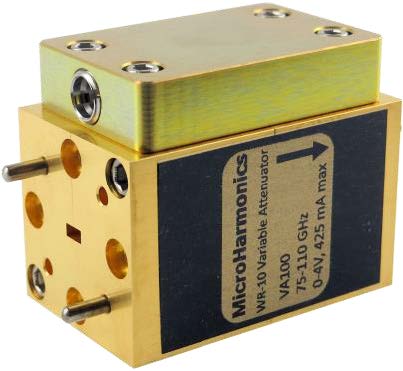

| VA100 | WR-10 | 75 – 110 | 0-35 | 1.2 | 2.3 |
| VA080 | WR-8 | 90 – 140 | 0-30 | 0.8 | 2.4 |
| VA065 | WR-6.5 | 110 – 170 | 0-35 | 1.5 | 1.5 |
| VA51(TBD*) | WR-5.1 | 140 – 220 | |||
| VA43(TBD*) | WR-4.3 | 170-260 | |||
| VA34(TBD*) | WR-3.4 | 220-325 |
| Model | Flange(EIA) | Band (GHz) |
Insertion Loss (dB, Avg) |
Cross-Polarization (dB, Typ min) |
Isolation (dB, Typ min) |
| OT148 | WR-15 | 50-75 | |||
|---|---|---|---|---|---|
| OT122 | WR-12 | 60–90 | |||
| OT100(TBD) | WR-10 | 75-110 | |||
| OT080 | WR-8 | 90–140 | 0.5 | 35 | 40 |
| OT065 | WR-6.5 | 110-170 | 0.4 | 40 | 40 |
| OT051 | WR-5.1 | 140–220 | 0.5 | 35 | 45 |
| OT043(TBD) | WR-4.3 | 170-260 | |||
| OT034 | WR-3.4 | 220–330 | 0.5 | 35 | 45 |
| OT028(TBD) | WR-2.8 | 260-400 |
